Gravity: Bluno Beetle Shield
Gravity: Bluno Beetle Shield
Introduction

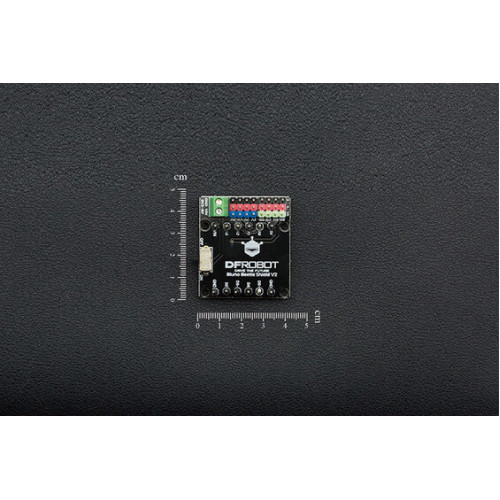

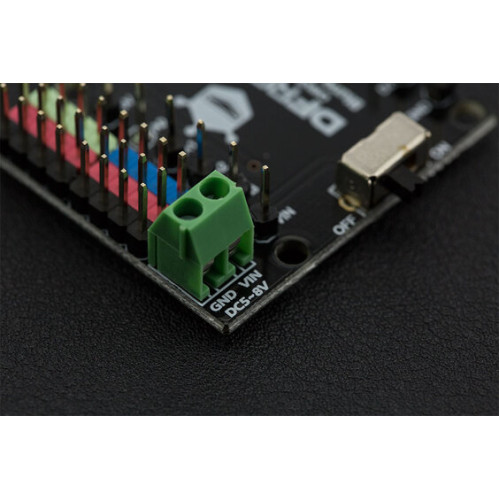

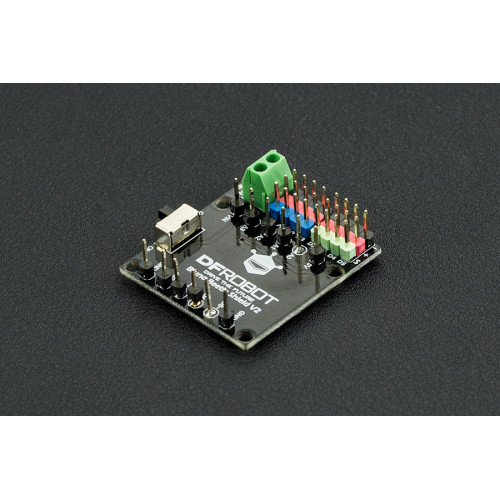

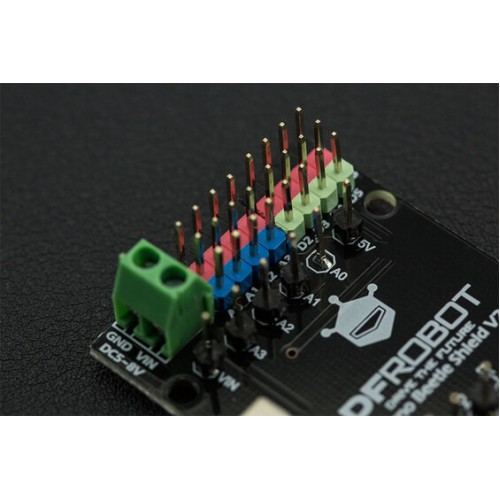

The Bluno Beetle Shield expands the Beetle's single analog and digital I/O pins to the 3 pin "gravity" interface, giving more power and ground connections and making it easier to attach gravity interface modules. It also includes a convenient external power supply and a 5-8v switch to power the board on and off. To use the shield, the Bluno Beetle is stacked on to the shield's I/O pins and then soldered in place.
Features
- Digital I/O Pins x4: D2-D5
- Analog Input Pins x4: A0-A3
- Vin input range: 5-8v
- Mounting Holes x4 (3mm diameter)

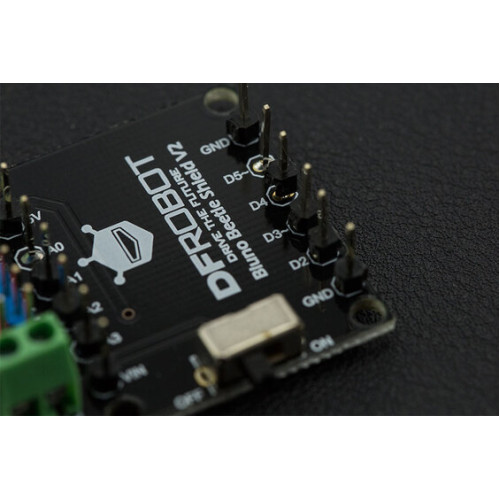

- Power Switch
Documents
Shipping List
- Bluno Beetle Shield x1
| Specification | |
| Baud Rate | 9600 - 115200 bps |
| Connector | Gravity |
| Output | Analog, digital |
| Power | 5-8v |
| Range Output | Digital I/O Pins x4: D2-D5 Analog Input Pins x4: A0-A3 |
