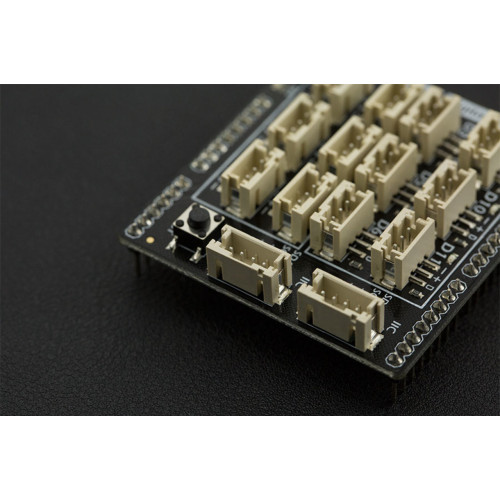

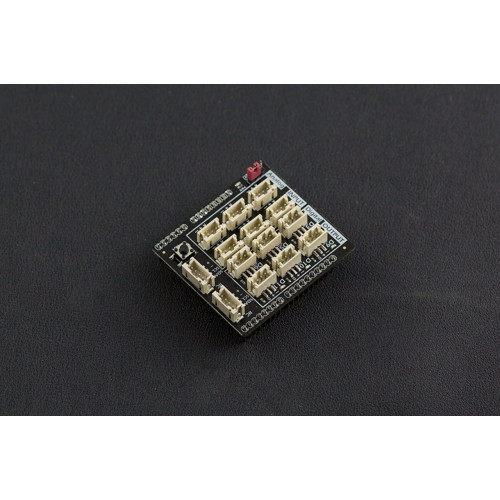

Boson Cookie I/O Expansion Shield for Arduino
Boson Cookie I/O Expansion Shield for Arduino
Introduction
The Cookie I/O expansion shield is designed for beginners to electronics. The shield is directly compatible with the gravity series. We have implemented fail-safe systems to prevent bad connections from destroying the board. The board is protected from reverse voltage input. And connector ports only accept connections the correct way around. These fail safes make the board ideal for beginners and classroom settings - no need to worry about your students making the wrong connections!
Specification
- Digital I/O Pins: D3, D5, D6, D9, D10, D11 (PH2.0-3P)
- Analog Input Pins: A0 - A5 (PH2.0-3P)
- i2C Port: 2 (PH2.0-4P)
- Operating Voltage: 3.3V/5V (switchable)
- Size: 58 * 52 mm / 2.28 * 2.04 inches
- Weight: 50g
Documents
Shipping List
- Cookie I/O Expansion Shield x1
- Sensor connection cable x12
| Specification | |
| Baud Rate | 9600 bps |
| Connector | Gravity |
| Output | Analog, digital, I2C |
| Power | 3.3V/5V (switchable) |
| Range Output | Digital I/O Pins: D3, D5, D6, D9, D10, D11 (PH2.0-3P) Analog Input Pins: A0 - A5 (PH2.0-3P) i2C Port: 2 (PH2.0-4P) |
