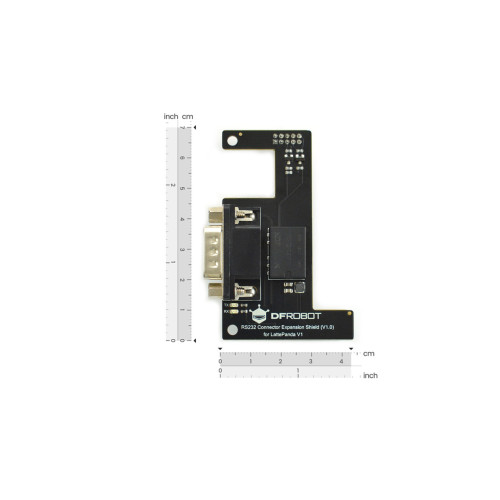

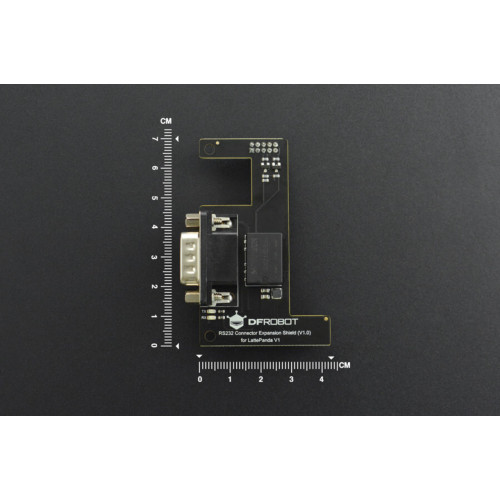

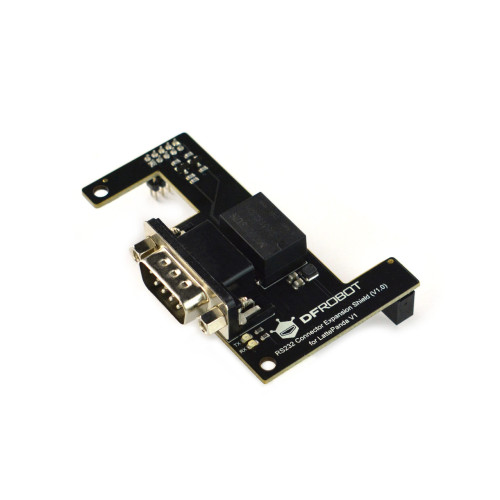

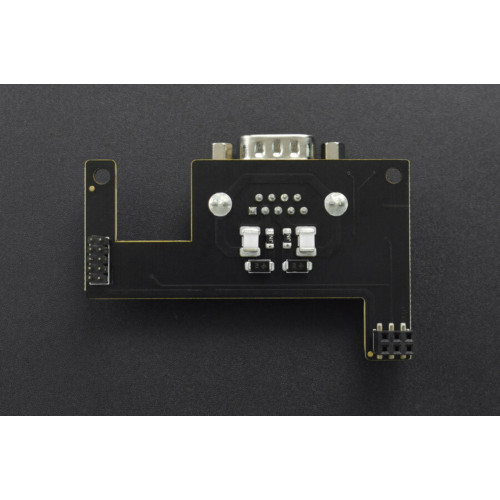

RS232 Connector Expansion Shield for LattePanda V1
RS232 Connector Expansion Shield for LattePanda V1
Introduction

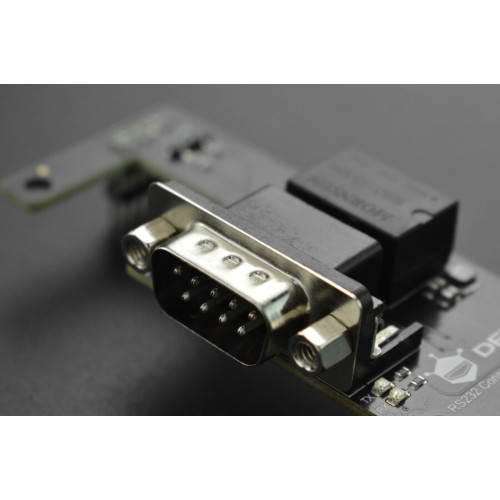

This industrial-grade RS232 shield from DFRobot is specially designed to expand one RS232 port(D-Sub, 9Pin, male) for LattePanda V1. With the characteristics of signal isolation, power isolation, lightning and surge protection, transient impulse voltage resistance, and bus protection, the module supports reliable data transmission and also can effectively protect your LattePanda mainboard. The product employs a stackable connection, which makes it able to be easily fixed onto LattePanda mainboard by copper columns without blocking the heat dissipation area of the mainboard. This RS232 Connector Expansion Shield can be safely applied in industrial scenarios.
Features
- Signal & power isolation
- Reliable transmission
- Up to 115200 bps communication baud rate
- Easy to connect and use
- No effect on the cooling performance of mainboard
- DB9 adapter and copper columns
Specification
- Operating Voltage: 5V
- TTL Level: 1.8V
- Operating Temperature: -40℃ to +85℃
- Baud Rate: up to 115200 bps
- Isolation Voltage: 2500VDC
- EIA/TIA-232-F Standard Compliant
- Not Support Hot Plugging
Documents
Shipping List
- RS232 Connector Expansion Shield for LattePanda V1 x1
- DB9 Adapter Female to Female x1
- M3 Double-way Hexagonal Copper Column(12mm) x3
- M3 Round Head Screws x6
| Specification | |
| Baud Rate | 115200 bps |
| Connector | 1.8V |
| Output | EIA/TIA-232-F Standard Compliant (RS232) |
| Power | 5V |
| Range Output | 2500VDC |
