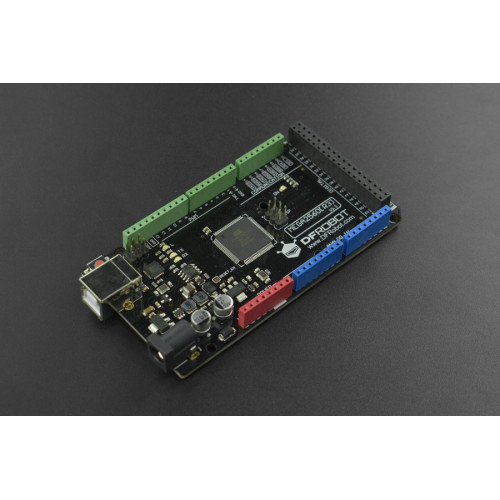

DFRduino Mega2560 (Arduino Mega 2560 R3 Compatible)
DFRduino Mega2560 (Arduino Mega 2560 R3 Compatible)

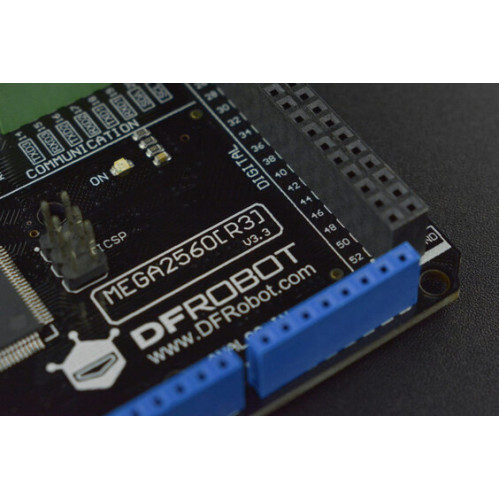

Introduction
The new version of DFRduino Mega2560 has improved the VIN power supply circuit by changing the easily overheat LDO to DC-DC circuit for ensuring safety and reliability in long-term use. In addition to optimizing the overheating issue, it offers a wider input voltage range. What’s more, DFRduino Mega2560 can work steadily even when only powered by a 3.7V lithium battery.

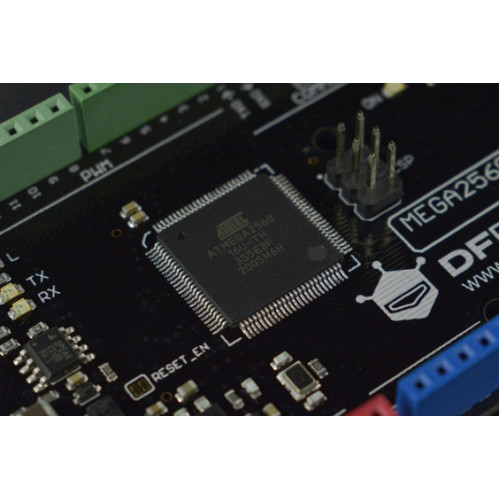

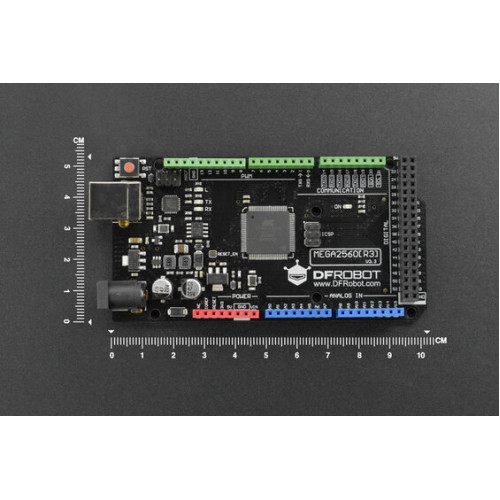

DFRduino Mega2560 is an ATmega2560-based microcontroller that provides full compatibility with "Arduino MEGA2560“. It features 54 digital I/O ports, 16 analog signal input ports, 4 UARTs(hardware serial ports), and a 16MHz crystal oscillator. The board comes with a bootloader that enables users to download programs directly via a USB. You can simply power it with a USB cable or a standard adapter or use a battery as external power. Mega 2560 has 256KB FLASH, two times of Mega1280, which could offer a larger create space for your projects.
Specification
- Controller Model: ATmega2560
- Operating Voltage: 5V
- Input Voltage(VIN): 3-16V(20V max)
- Digital I/O Pins: 54 (of which 15 provide PWM output)
- Analog Inputs: 16 I/O
- FLASH: 256 KB (of which 4 KB is used by the bootloader)
- SRAM: 8KB
- EEPROM: 4KB
- Frequency: 16MHz
Documents
- DFRobot Arduino Compatible Microcontroller Selection Guide
- DFRduino Mega 2560 Selection Guide
- Arduino Mega 2560 Website
- Arduino IDE Download
- DFRduino Mega2560 Controller Schematics
Shipping List
- DFRduino Mega2560 Microcontroller x1
| Specification | |
| Baud Rate | 9600 - 115200 bps |
| Connector | Gravity |
| Refresh rate | 90Mhz |
| Power | 5V |
| Range Output | 0-1000PPM |
| Memory | |
| Flash(M) | 256 KB (of which 4 KB is used by the bootloader) |
| SRAM(KB) | 8KB |
| Motherboard | |
| USB | A-B USB cable |
| Processor | |
| Clockspeed | 16MHz |
