Gravity: LED Switch x 5 Pack
Gravity: LED Switch x 5 Pack
Introduction

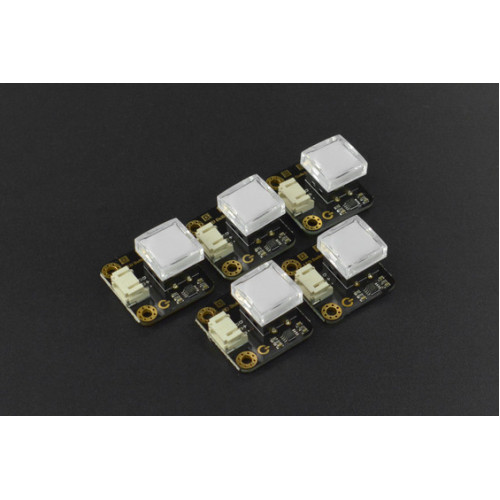

This is a simple LED-illuminated self-lock switch button. It’s just like a basic switch button, but it lights up color(red/yellow/green/blue/white) when pressed down, which gives you visual feedback. These little buttons can be used with micro:bit to realize various fun interactive projects, such as switch, backlight keyboard, music player panel, and recording control panel.This is a self-lock switch button with LED light display.
Applications
- Backlight keyboard
- Music player panel
- Recording control panel
Specification
- Working Voltage: +3.3-5V (3.3V is recommended)
- Output: Digital signal
- Interface: PH2.0-3P
- Size: 27 x 26.5mm

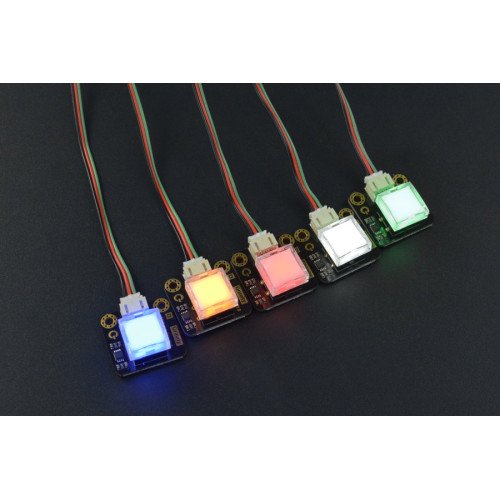

- LED Light Color: red, yellow, green, blue, white
- Note: The module comes with a self-lock function. When the button is pressed down, the module outputs High, and the LED lights up. When being pressed again, the module outputs Low and the LED turns off.
Documents

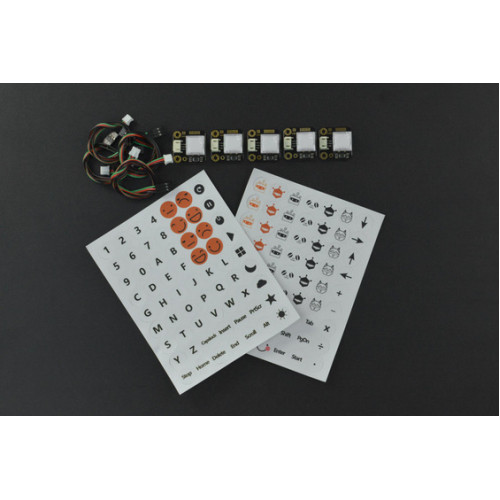

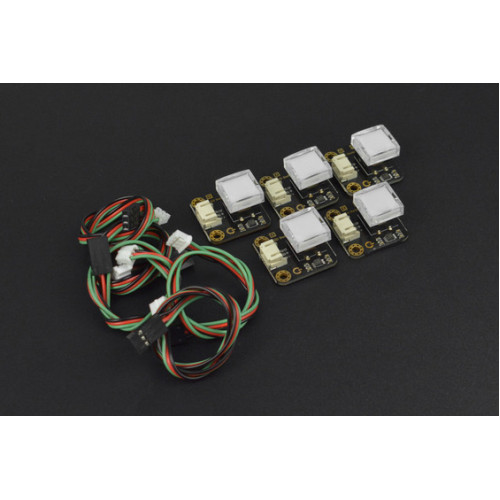

Shipping List
- Gravity: Digital Switch Button with LED x5 (red/ yellow / green/ blue/ white)
- Digital Sensor Connector x5

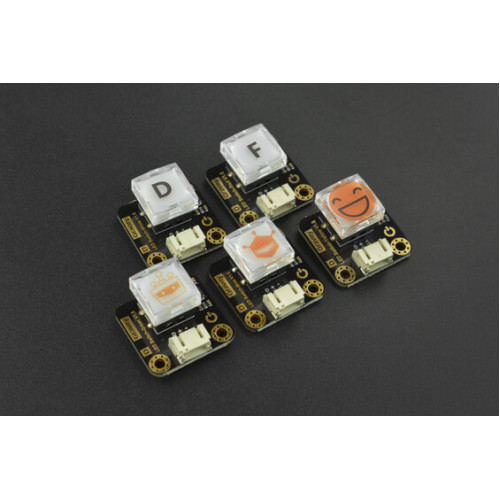

- Sticker x2
| Specification | |
| Cable Lenght | 15cm |
| Connector | Gravity |
| Output | PH2.0-3P |
| Power | +3.3-5V (3.3V is recommended) |
