Introduction
Most ultrasonic distance sensors aren't waterproof which can be a problem if you need your project to withstand the elements outdoors. No need to worry any more! We have developed waterproof & ultrasonic distance sensors with a waterproof sealed emitter. This sensor is suitable for outdoor applications such as car reversing sensors, security alarms, industrial inspection, etc. What will you make?
Note: SR04T can only work at 5V and it comes with only one working mode. Version 2.0 can work at 3.3-5V, and it provides several modes to choose from.
Specification
- Operating voltage: DC3.0-5.5V
- Static current: >8mA
- Operating current: 30mA
- Operating range: 20cm ~ 6m
- Resolution: 1mm
- Detecting Angle: < 75°
- Operating Temperature: -20 ~ 70°C
- Cable Length: 2.5m
- Dimension: L42mm*W29mm*H12mm/1.26*0.87*0.36inches
- Weight: 54g
Documents
- Product Wiki
Shipping List

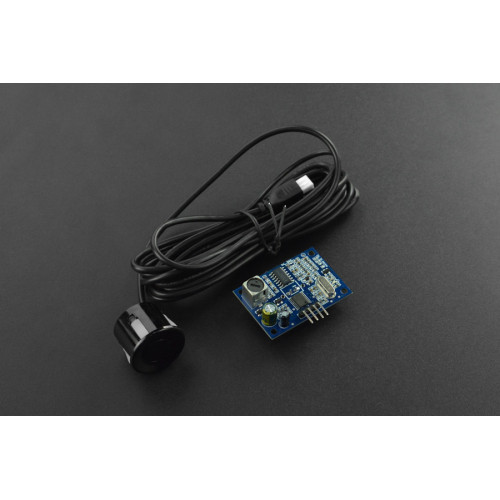

- Water - proof Ultrasonic Sensor with Separate Probe x1
| Specification | |
| Baud Rate | 9600 bps |
| Cable Lenght | 250cm |
| Connector | Gravity |
| Output | UART |
| Resolution | 1mm |
| Power | DC3.0-5.5V Operating Current: ≤8mA |
| Range Output | 20cm ~ 6m |
