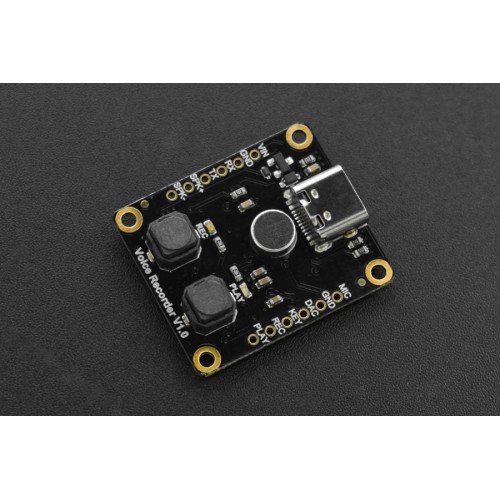

Fermion: Voice Recorder Module (Breakout)
Introduction
Wanna buy a simple & practical voice recorder? This one is right for you! The voice recorder module supports 4 controlling modes (Arduino, AT command, on-board buttons, and ADKEY), and multi-segment voice recording. You can directly press the on-board buttons to record or play voice without using a controller. Moreover, the 16MB storage on the module can store up to 40 minutes of voice recording and the recorded files can be copied to your computer via the type-C interface.
Features
- Support about 40 minutes voice recording
- Support multi-segment voice recording
- Voice recording/playing via on-board buttons
- On-board power amplifier
- Support analog U-disk
Applications
- DIY Plush Toys
- Handmade Personalized Gift
- Event Voice Memo
Specification
- Operating Voltage: 3.3~5V
- Operating Current: >10mA
- Storage: 16MB
- Sampling Rate: 48kbs
- Communication: UART

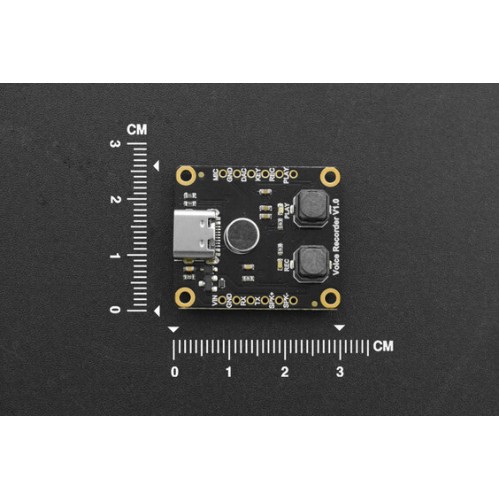

- Dimension: 26*30mm/1.02*1.18”
Documents

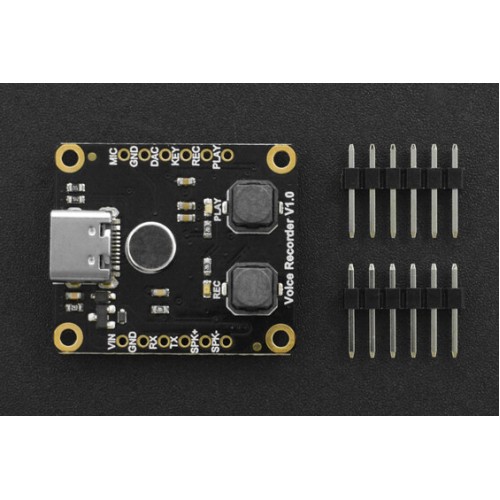

Shipping List
- Voice Recorder Module-Breakout x1
- 2.54-6P Single-Row-Pin Black x2
| Specification | |
| Baud Rate | 115200 bps |
| Connector | fermion |
| Output | UART, USB |
| Power | 3.3~5V |
| Memory | |
| Flash(M) | 16MB |
| SRAM(KB) | 520KB |
| Motherboard | |
| USB | USB Type C x 1 (48kbs) |
