APC220 Radio Communication Module
Introduction
The APC220 radio module provides a simple and economic solution to wireless data communications. Integrates an embedded high speed microprocessor and high performance IC that creates a transparent UART/TTL interface, and elminates any need for packetizing and data encoding. If you are looking for a low-cost solution with better range performance, this has being our customer choice for a long time now.
With this module, you can build wireless projects in an easy way.
Specification
- Voltage: 5V
- Transmit distance up to 1000m (line of sight) @9600 bps
- 256 bytes data buffer
- High sensitivity (-112dbbm @9600 bps)
- GFSK modulation
- UART/TTL interface
- Embedded watch dog
- Size: 37 x 17 x 6.5 mm (1.46x 0.67x 0.26 in)
Documents
Shipping List

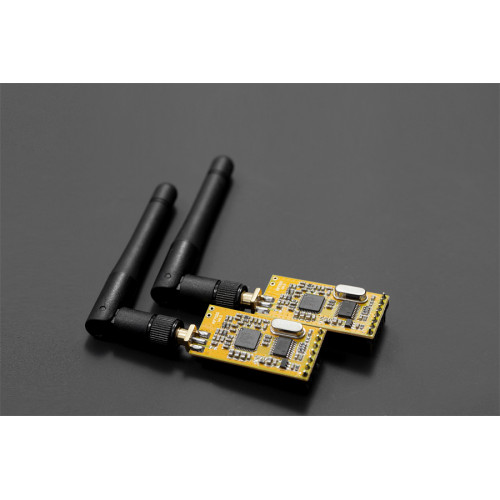

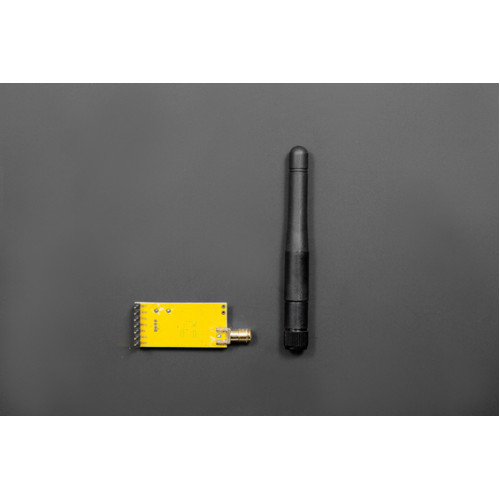

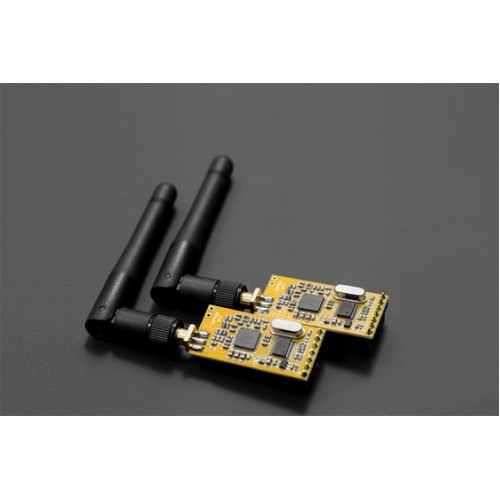

- APC220 module x2
- Antenna for radio communication x2
- USB to TTL Converter (CP210) x1
| Specification | |
| Accuracy | -112dbbm |
| Baud Rate | 9600 bps |
| Connector | fermion |
| Output | UART/TTL interfac |
| Refresh rate | 418MHz-455MHz |
| Resolution | 256 bytes data buffer |
| Power | 5V |
| Range Output | Transmit distance up to 1000m (line of sight) @9600 bps |
