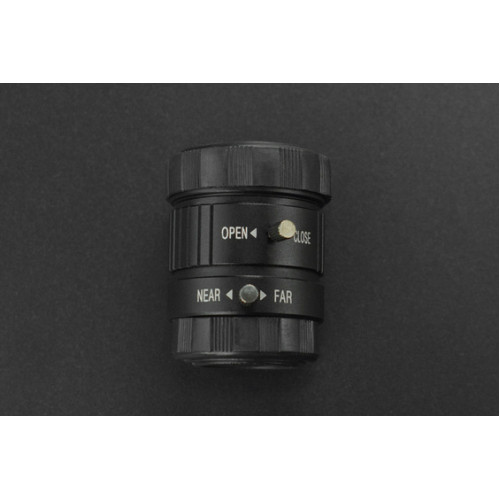

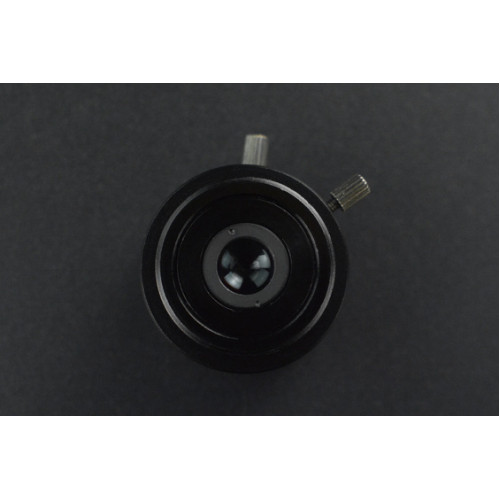

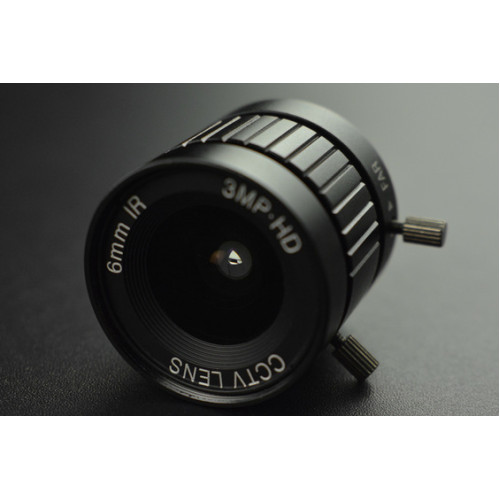

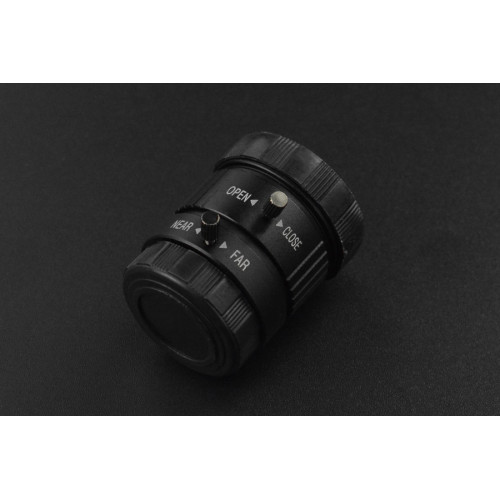

6mm Industrial Wide Angle Lens
6mm Industrial Wide Angle Lens
Introduction
Note: The product not include Jetson Nano.

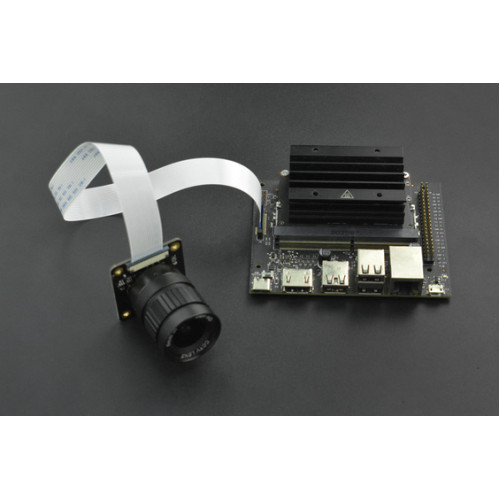

This is a 6mm 3MP Wide Angle Lens which is suitable to use with the Raspberry Pi High-Quality Camera and Jetson Nano 12.3MP camera. It has a wide field of view and can be used for CCTV applications where it can be helpful in viewing a larger area of the target, such as wildlife cameras, security cameras, doorbell cameras, etc. The lens can be easily screwed into the Raspberry Pi High-Quality Camera. Also, it comes with front and back covers for protection when it's not in use.
Features
- Wide Field of View suitable for CCTV applications
- Adjustable focus ring to better focus subjects
- Front and back covers for protection
Specification
- Focal Length: 6.0mm
- Image Format: 1/2"
- Relative Aperture: 1.2
- Mount: CS
- Field of View: 63°
- Back Focal Length: 7.53mm
- Aperture: Manual
- M.O.D(minimum object distance): 0.2m
- Dimensions: ø30*34
- Weight: 53g
- Composition: aluminum alloy +6G
Shipping List
- 6mm Industrial Wide Angle Lens x1
- Dust Cap x2
- C/CS Connection Ring x1
| Specification | |
| Cable Lenght | 15cm |
| Connector | Gravity |
| Output | Digital |
| Resolution | 3MP |
| Power | 3.3V |
