SPI/I2C Monochrome 60x32 0.5" OLED Display for Arduino
SPI/I2C Monochrome 60x32 0.5" OLED Display for Arduino
Introduction

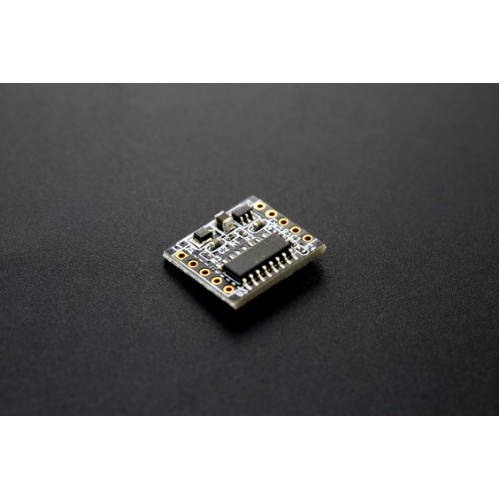

OCELL is a 0.5" micro OLED display designed for Arduino and other microcontrollers. This micro OLED display is small as the grown-up's fingernail- 0.5" only. It has 450cd/m^2 screen brightness with extremely high contrast and readability; moreover, it contains 60 x 32 independent white OLED pixels that each can be separately controlled by the driver chip. This means you can display any images and words on the screen . Except this, the spontaneous light OLED display does not require a backlight, which greatly reduces the power consumption.
The Oled screen supports SPI (Default setting ) and I2C interface. You could connect it to Ardunio micro directly without doing any PCB layout by yourself, also you could wire it to any other MCUs like STM series , 51 series and so on. It is a good choice for a DIYer to make a interesting stuff by Arduino. Also it is very convenient for a pro-engineer to quickly develop and test a project which need a tiny COOL OLED display.
Specification
- Operating Voltage: 3.3V -5V
- PCB dimension: 17.8mm x 15.5mm (0.70*0.61")
- Screen size: 0.5" inch (W*H: 15.30x10.20 mm)
- Color: Monochrome (white)
- OLED type: PM -OLEDOLED driver: LD7032
- Pixels : 60 x 32
- Contrast: 2000: 1
- Communication: SPI, I2C
Documents

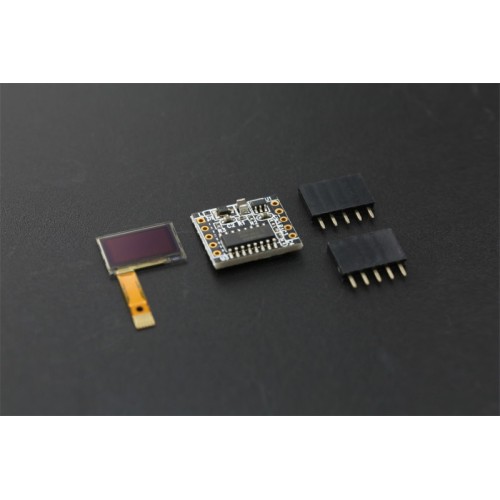

Shipping List
- Micro Oled driver board x1
- 0.5“ Oled Display x1
- 5 Pin header x2
| Specification | |
| Accuracy | 2000: 1 |
| Connector | fermion |
| Output | SPI, I2C |
| Resolution | 60 x 32 |
| Power | 3.3V -5V |
| Range Output | 0.5" inch (W*H: 15.30x10.20 mm) |
