RS485 Connector Expansion Shield for LattePanda Alpha&Delta
RS485 Connector Expansion Shield for LattePanda Alpha&Delta

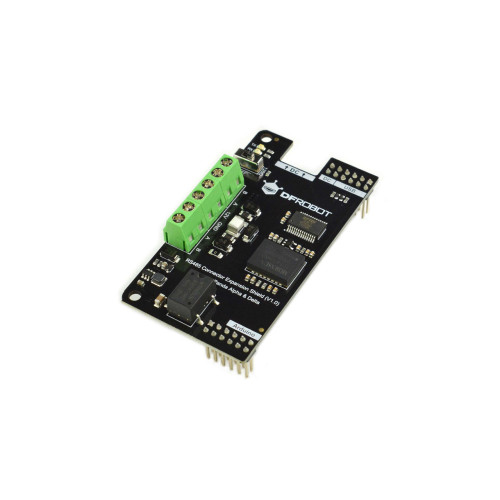

Introduction

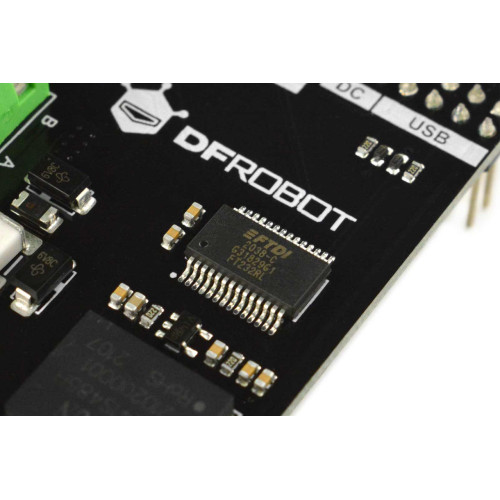

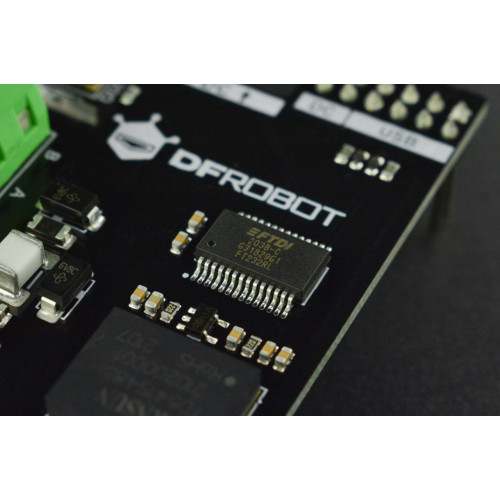

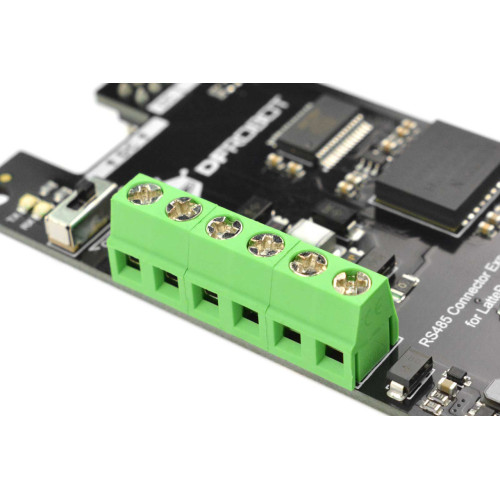

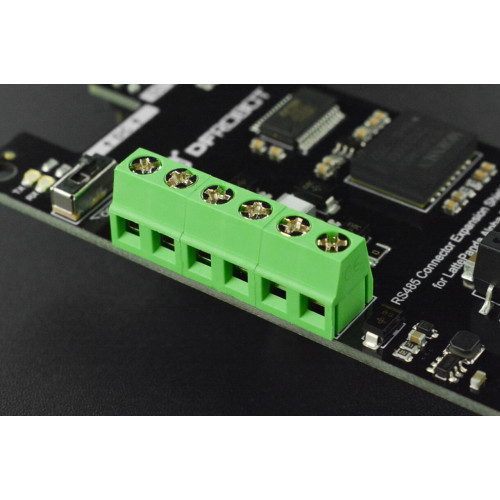

This industrial-grade RS485 shield from DFRobot is specially designed to expand two parallel RS485 ports (terminal) with high reliability for LattePanda Alpha, LattePanda Delta and LattePanda 3 Delta. Employing FTDI USB to serial port chip and industrial-grade isolated transceiver module, the shield comes with the characteristics of signal isolation, power isolation, lightning and surge protection, transient impulse voltage resistance, and bus protection so that it supports reliable data transmission and also can effectively protect your LattePanda mainboard for providing a high-reliability connection for point-to-point.

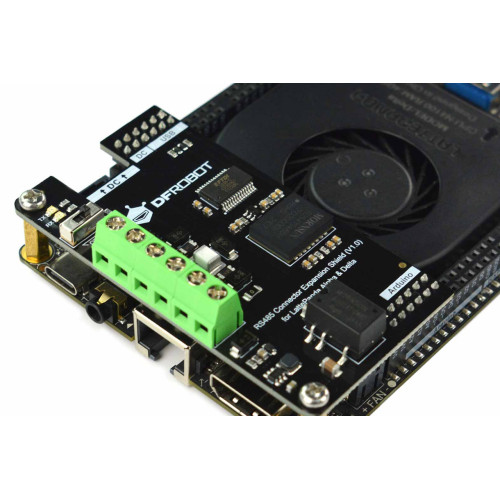

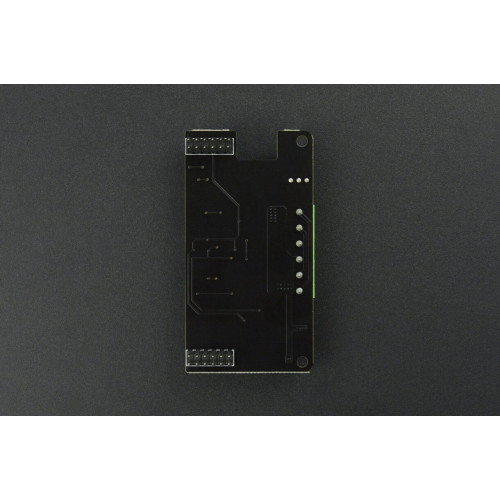

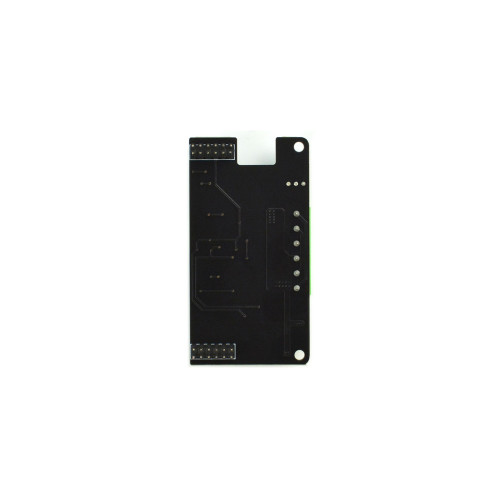

The product employs a stackable connection, making it able to be easily fixed onto LattePanda mainboard by copper columns without blocking the heat dissipation area of the mainboard. It can be safely applied in industrial scenarios.
Application:
- Facilitate the development and use of industrial-grade RS232 communication on Windows (compatible with Linux)
Features
- Signal & power isolation
- Reliable transmission
- Up to 1M bps communication baud rate
- 12V power output (100mA)
- Onboard 120Ω terminal matched resistance
- Easy to connect and use
- No effect on the cooling performance of mainboard
- Comes with copper pillars and screws

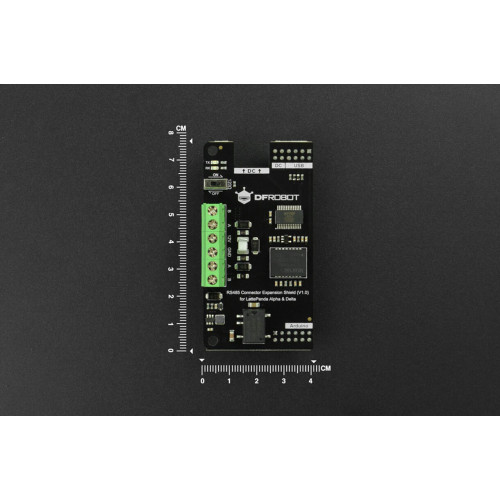

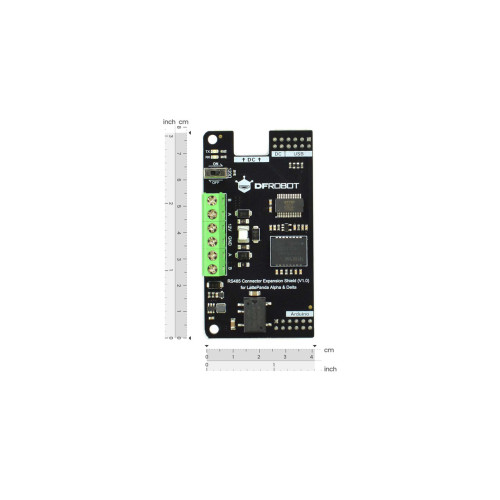

Specification
- Operating Voltage: 5V
- Operating Temperature: -40℃ to +85℃
- Baud Rate: up to 1M bps
- Isolation Voltage: 3000VDC
- Not Support Hot Plugging
Documents
Shipping List

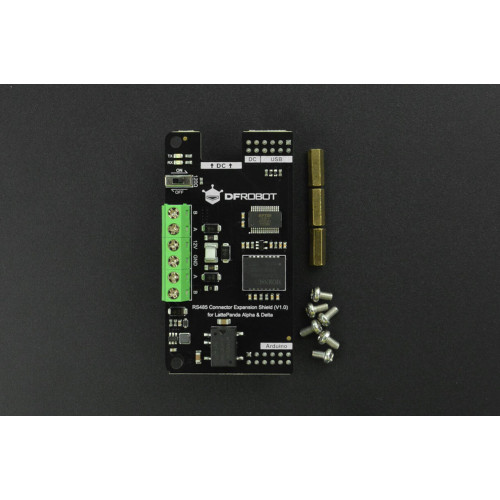

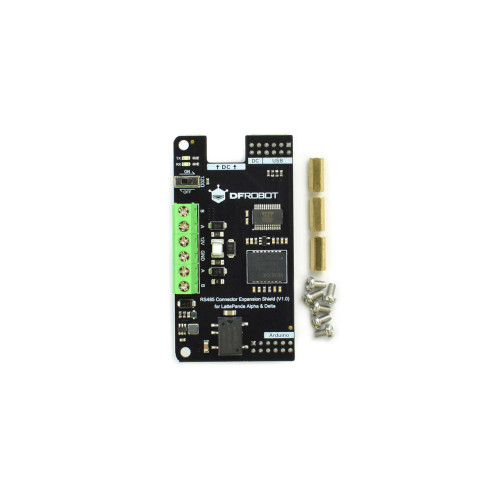

- RS485 Connector Expansion Shield for LattePanda Alpha&Delta x1
- M3 Double through hexagonal copper column(12mm) x3
- M3 Round head screws x6
| Specification | |
| Baud Rate | up to 1M bps |
| Connector | Gravity |
| Output | RS485 |
| Power | 5V |
| Range Output | 3000 VDC |
