PHB2.0-8PIN Power Supply Cable for LattePanda Sigma Single Board Server (30cm)
PHB2.0-8PIN Power Supply Cable for LattePanda Sigma Single Board Server (30cm)

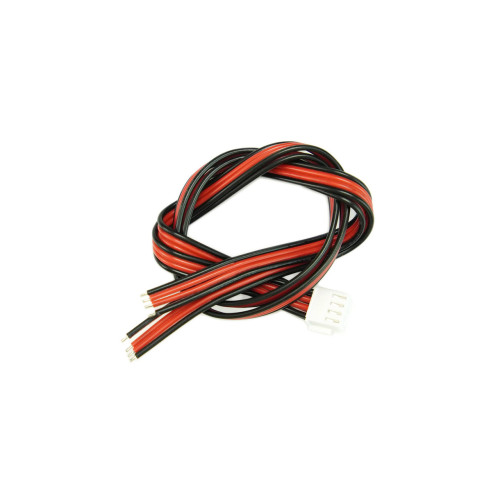

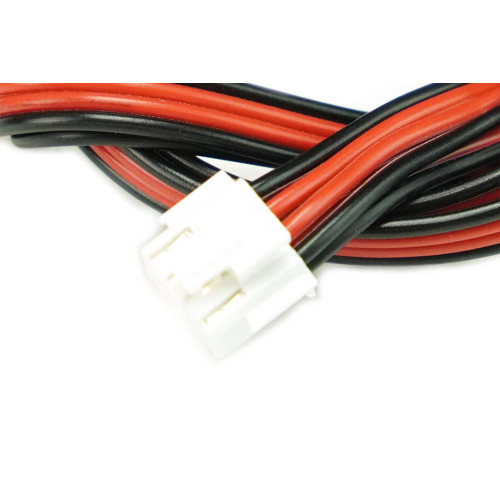

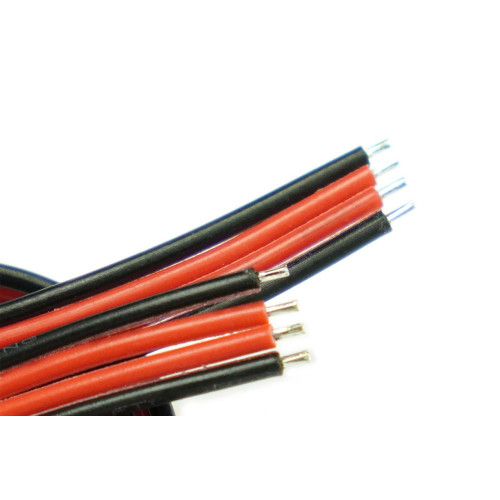

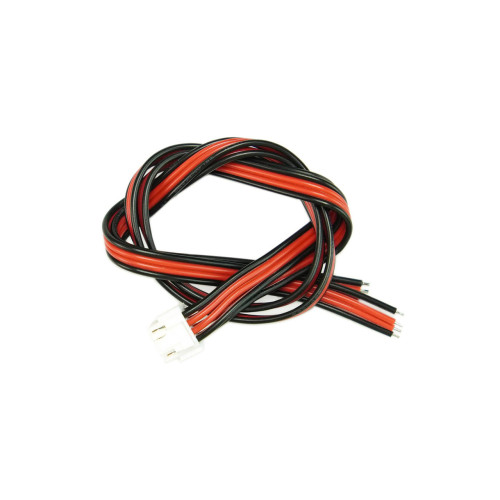

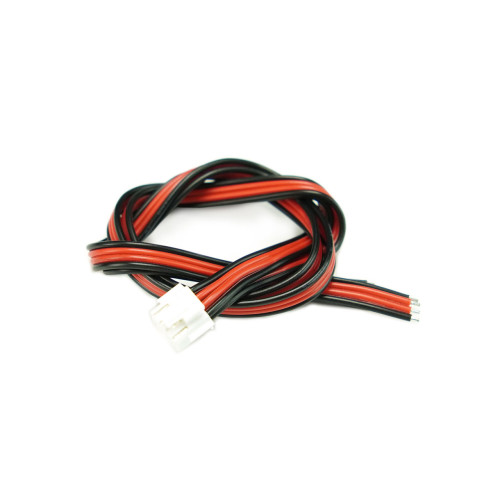

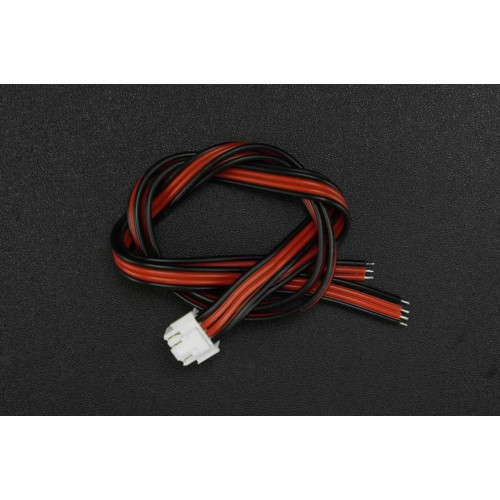

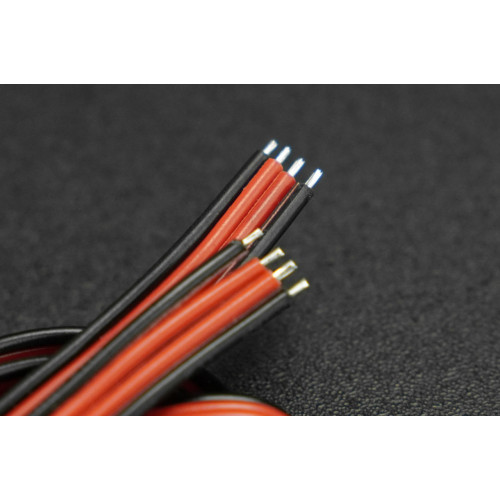

Introduction
This is a PHB2.0 interface power cable specifically designed for the LattePanda Sigma - x86 Windows / Linux Single Board Computer Server.
It has a length of 30cm and features clear color coding, making it easy for users to connect to the interface.
Specification
- Interface: PHB2.0-8Pin
- Length: 30cm
- Current Capacity: 2A
- Definition:
- Black wire - GND,
- Red wire - Power,
- Red wire - Power,
- Black wire - GND,
- Black wire - GND,
- Red wire - Power,
- Red wire - Power,
- Black wire - GND
Shipping List
- PHB2.0-8PIN Female to Bare Wire-30cm x1
| Specification | |
| Cable Lenght | 30m |
| Connector | Gravity |
| Output | PHB2.0-8Pin |
| Range Output | 2A |
