Gravity: TT Motor Encoders Kit
Gravity: TT Motor Encoders Kit
Introduction

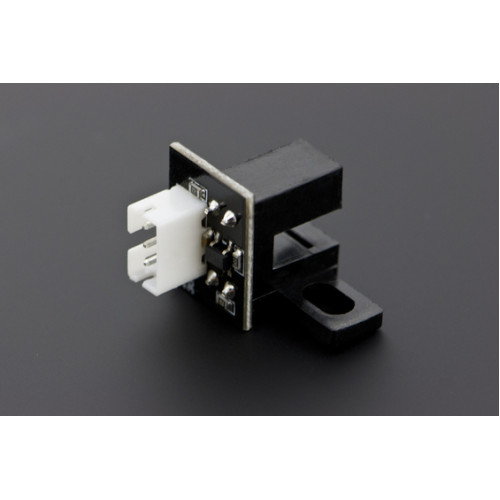

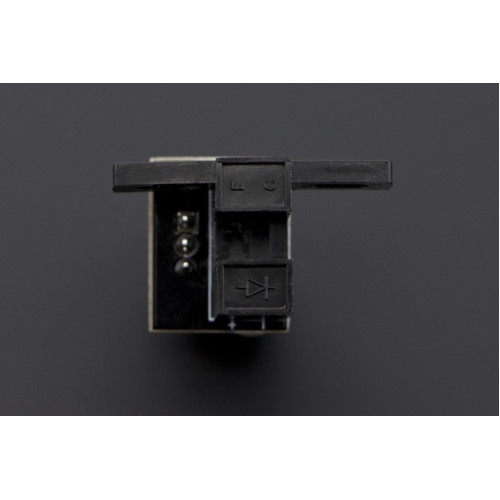

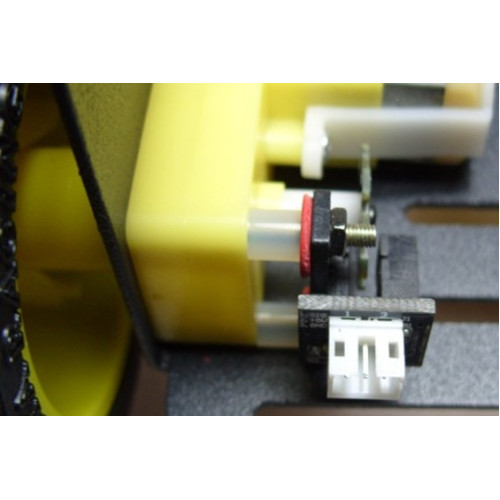

This encoders kit are designed for TT motors. It provides the rotation degree of the wheels. Encoder uses non-contact method to convert the angular displacement signals. Best fit with Micro DC Geared Motor.It includes encoders, plastic tube, paper-mediated gasket etc.
It uses Gravity interace which is a plug&play design to get connected with Arduino IO Expansion Shield or Raspberry IO Expansion Shield.
Specification
- Voltage:+5V
- Current:<20mA
- Resolution:20 PPR
- Weight:20g
Documents

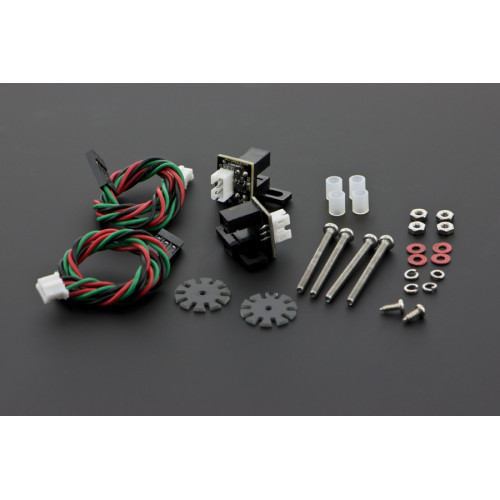

Shipping List
- M3*5 screws x2
- M3*50 screws x4
- Rubber ring x4
- Washer x4
- Plastic cover x4
- Grating disk x2
- Digital cable x2
| Specification | |
| Baud Rate | 9600 bps |
| Cable Lenght | 15cm |
| Connector | Gravity |
| Output | Analog |
| Resolution | 20 PPR |
| Power | +5V |
