Fermion: TCS3200 RGB Color Sensor (Breakout)

Introduction

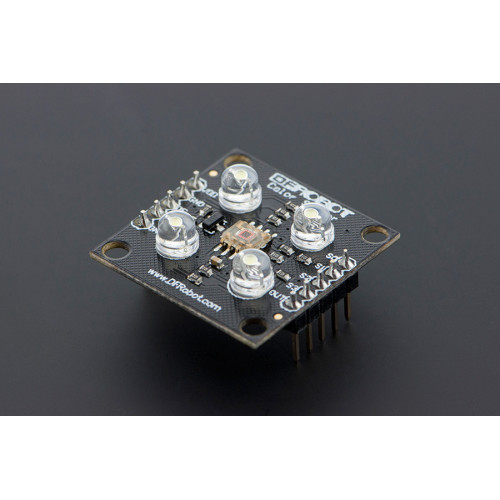

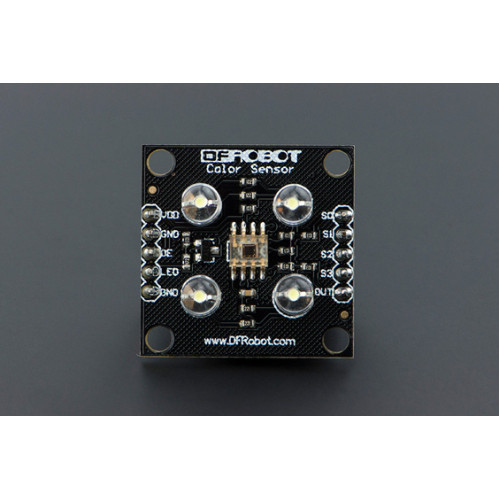

This is an Arduino RGB Color Sensor breakout uses TAOS TCS3200 RGB sensor chip and 4 white LEDs.  The TCS3200 arduino color sensor can detect and measure a nearly limitless range of visible colors. Applications include test strip reading, sorting by color, ambient light sensing and calibration, and color matching, to name just a few.



The TCS3200 has an array of photodetectors, each with either a red, green, or blue filter, or no filter (clear). The filters of each color are distributed evenly throughout the array to eliminate location bias among the colors. Internal to the device is an oscillator which produces a square-wave output whose frequency is proportional to the intensity of the chosen color.

Specification

Documents

Shipping List
