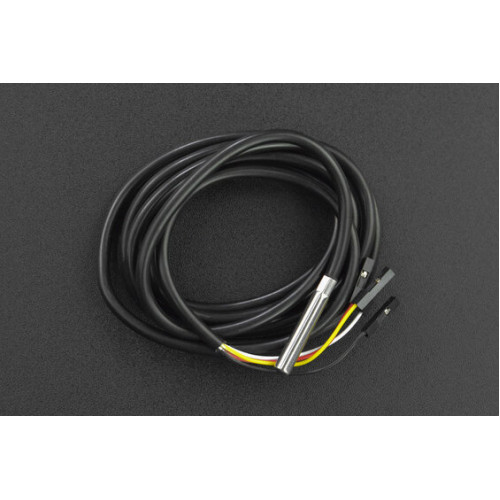

I2C Temperature & Humidity Sensor (Stainless Steel Shell)
Introduction
This I2C digital temperature & humidity sensor offers high accuracy of ±3.0RH% for humidity and ±0.5℃ for temperature and features a user-programmable humidity & temperature alarm function.
Its housing is made of 304 stainless steel to ensure good impact resistance, heat resistance, low temperature, and chemical resistance. The sensor output is designed as DuPont 2.54 connector for easy wiring. Also, there are two built-in 4.7K pull-up resistors and one 100nF filtering capacitor so the sensor can be directly used with microcontrollers like Arduino.
This temperature & humidity sensor can be applied to electronic, medical, automotive, industrial, weather, and other fields, including home appliances like HVAC, dehumidifiers and refrigerators, testing & inspection equipment, and other relevant temperature & humidity measurements and controls.
Features
- 304 stainless steel, good impact resistance
- Low power consumption, high accuracy
- User-programmable temperature & humidity alarm response address (ARA)
Applications
- HVAC
- Dehumidifiers and refrigerators
- Testing & inspection equipment
- Other relevant temperature & humidity measurements and controls
Specification
- Operating Voltage: 2.5V~5.5V
- Standby Current: 0.05uA (Typical), 0.3uA (Max)
- Average Operating Current: 1.5uA (Typical), 3.0uA (Max)
- Temperature Measurement Range (℃): -40℃~125℃
- Temperature Measurement Accuracy (℃): ±0.5℃@0℃~50℃
- Humidity Measurement Range (%RH): 0%RH~100%RH
- Humidity Measurement Accuracy (%RH): ±3.0%RH@20%RH~80％RH
- Communication: I2C
- Connector: DuPont 2.54
- Reserved DuPont Wire Length: 5cm
- Wire Length: 1.5m
- Housing: 304 stainless steel
- Wire Sequence: red VCC; black GND; white SCL; yellow SDA
Documents
Shipping List
- I2C Temperature & Humidity Sensor (Stainless Steel Shell) x1
| Specification | |
| Accuracy | Temperature Measurement Accuracy (℃): ±0.5℃@0℃~50℃ Humidity Measurement Accuracy (%RH): ±3.0%RH@20%RH~80％RH Communication: I2C |
| Baud Rate | 9600 bps |
| Cable Lenght | 150cm |
| Connector | Gravity |
| Output | I2C |
| Power | 2.5V~5.5V |
| Range Output | Temperature Measurement Range (℃): -40℃~125℃ Humidity Measurement Accuracy (%RH): ±3.0%RH@20%RH~80％RH |
