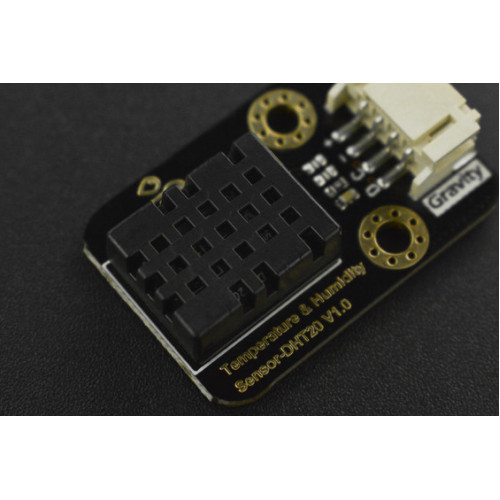

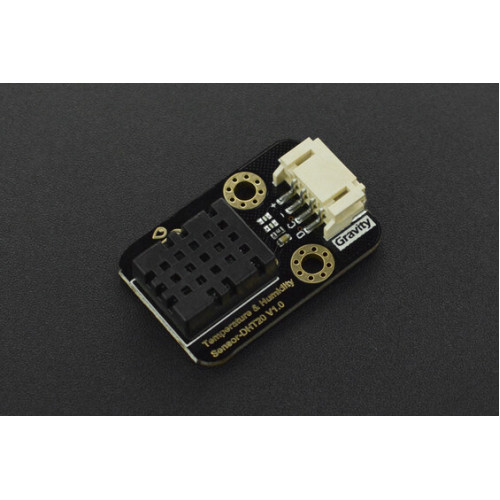

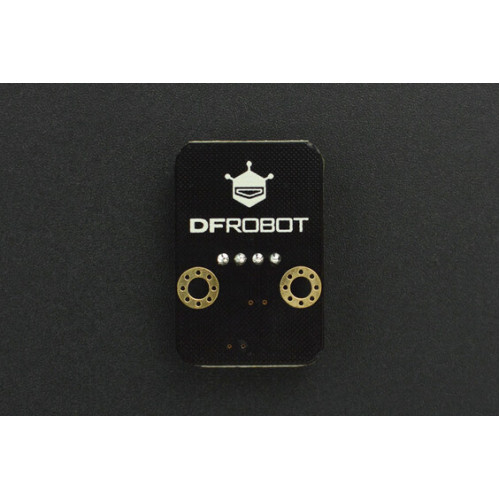

Gravity: DHT20 Temperature & Humidity Sensor for Arduino
The DHT20 temperature & humidity sensor is the newly upgraded version of the DHT11. Data accuracy, stability, response speed, measurement range are greatly improved up.
DHT20 is a brand new ASIC dedicated chip, an improved MEMS semiconductor capacitive humidity sensor element and a standard on-chip temperature element. All sensors are factory calibrated and characterized by low power, high precision & stability, fast response, and strong anti-interference. Moreover, the DHT20 performance parameters of accuracy, power supply voltage, measurement range and response time have been enhanced greatly over the previous generation, making it more cost-effective.
Besides that, the DHT20 temperature & humidity sensor employs I2C digital output protocol, which is very suitable for HVAC, automobiles, data loggers, weather stations, home appliances, and other related temperature and humidity detection and controlled areas.
Features
- Factory calibration
- I2C digital output
- Quick response, strong anti-interference ability
- Low power, low cost
- Compatible with mainboards like Arduino, micro:bit, ESP32, Raspberry Pi
- Compatible with 3.3~5.5V main controller
Applications
- HVAC
- Automobiles
- Data loggers
- Weather stations
- Home appliances
Specification
- Operating Voltage: 3.3V ~ 5.5V DC
- Operating Current: ＜1mA
- Output Signal: I2C (0×38)
- Temperature Range: -40 ~ +80°C ±0.5°C
- Humidity Range: 0~100%RH ±3%RH (25°C)
- Resolution: 0.01℃, 0.024%RH
- Storage Condition: 10℃-50℃, 20-60%RH

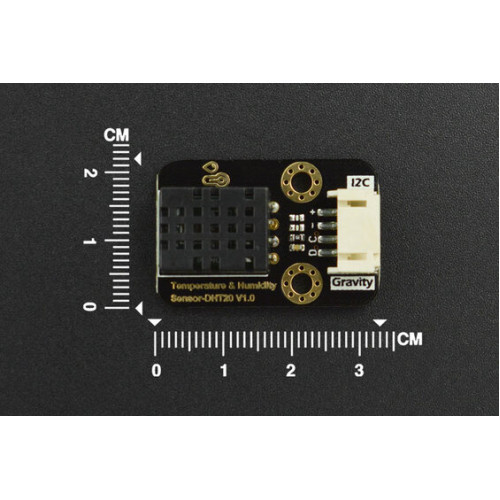

- Board Dimension: 22*33 mm/0.87*1.30”
- Mounting Hole Size: Inner diameter 3.1mm (0.13”)/Outer diameter 6 mm (0.24”)
Documents

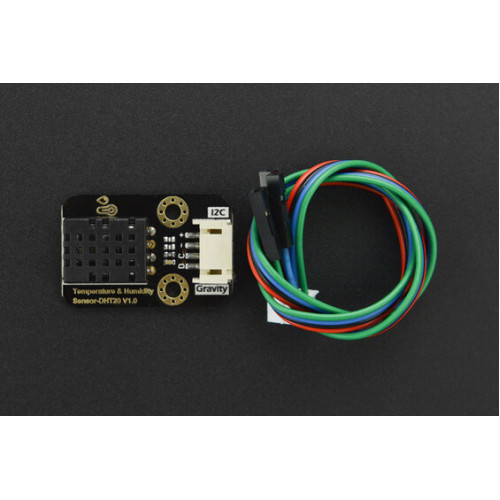

Shipping List
- Temperature and Humidity Sensor x1
- Gravity-4Pin I2C Sensor Connector (30cm) x1
| Specification | |
| Baud Rate | 115200 bps |
| Cable Lenght | 15cm |
| Connector | Gravity |
| Output | I2C (0×38) |
| Resolution | 0.01℃, 0.024%RH |
| Power | 3.3V ~ 5.5V DC |
| Range Output | Temperature Range: -40 ~ +80°C ±0.5°C Humidity Range: 0~100%RH ±3%RH (25°C) |
