Infrared Photoelectric Switch
Introduction

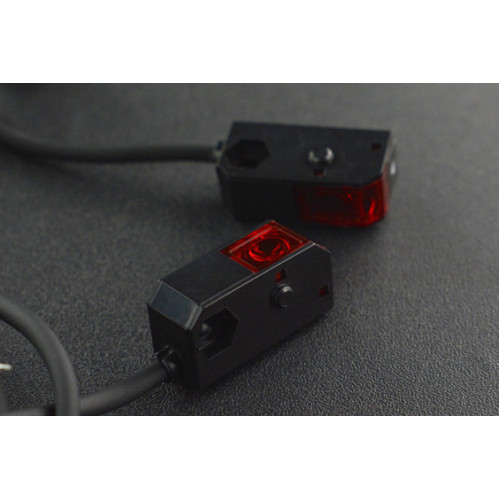

This is a pair of photoelectric switches with a detection distance of up to 1.5m and a fast and stable response time of less than 1ms. The module consists of a transmitter and a receiver. The transmitter contains an infrared diode that can emit infrared rays with strong penetration, thereby ensuring that the sensor can achieve stable signal reception regardless of weather, which greatly improves its measurement accuracy.
The module has a small size of 22.4*11.2*8.3mm and can be easily installed in a narrow space; It can work well within a temperature range of -20 ℃ to 65 ℃, which can be used in both indoor and outdoor environments.
This switch uses a DC voltage of 12-24V, which can be widely used in machinery automation, automobile anti-theft and other industries for detection, counting, gate passing, or other industrial automation sensing conditions, and can also be used in intelligent robot competition for speed detection and timing, etc.
Specification
- Voltage: 12-24V
- Output Form: three-wire DC
- Output Type: NPN
- Detection distance: 150cm
- Output current: 200mA
- Shell Material: polymer
- Operating Temperature: -20℃~65℃
- Operating Frequency: 1000Hz
- Response Time: ＜1ms
- Wiring: blue-GND, brown-VCC, black-output signal
- Dimension: 22.4*11.2*8.3mm/0.88* 0.44*0.33”
Shipping List

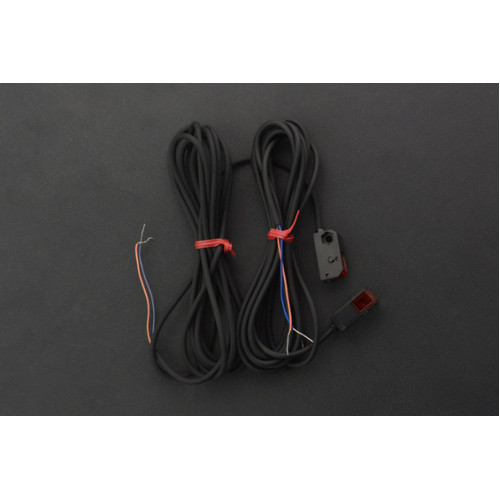

- Infrared Photoelectric Switch x1
- Accessories Packet x1
| Specification | |
| Cable Lenght | 200cm |
| Connector | Gravity |
| Output | NPN |
| Refresh rate | 1000Hz |
| Power | 12-24V |
| Range Output | 150cm |
