Gravity: PPG Heart Rate Monitor Sensor for Arduino (Analog/Digital)
Introduction
The DFRobot heart rate sensor is a thumb-sized heart rate monitor designed for Arduino microcontrollers.
This heart rate monitor sensor is a pulse sensor which is developed based on PPG techniques. This is a simple and low-cost optical technique that can be used to detect blood volume changing in the microvascular bed of tissues. It is relatively easy to detect the pulsatile component of the cardiac cycle according to this theory.

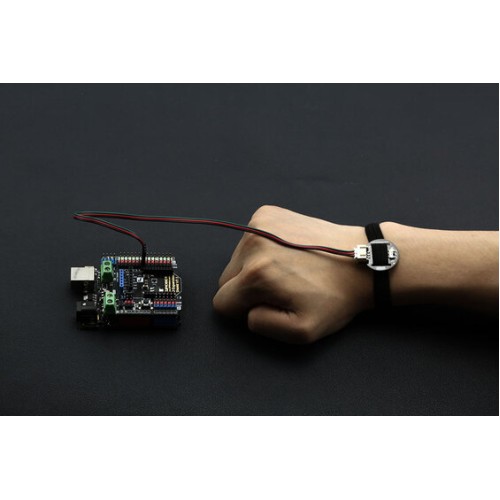

The sensor has two holes that you can use to attach to your belt. You can wrap on your finger, wrist, earlobe or other areas where it has contact with your skin.
A Gravity Interface is adapted to allow plug&play to ease the barrier of usage. The IO sensor shield is the best option to connect this heart rate sensor with your Arduino or other microcontrollers. Besides, this sensor can also be compatible with Raspberry Pi, intel edison, joule and curie by means of 3.3V Input Voltage.
Specification
- Input Voltage (Vin): 3.3 - 6V (5V recommended)
- Output Voltage: 0 - Vin (Analog), 0/ Vin (Digital)
- Operating current: <10mA
- Dimension: 28 x 24(mm), 1.102" x 0.945"(in)
- Interface Type: PH2.0-3P
Documents
Shipping List

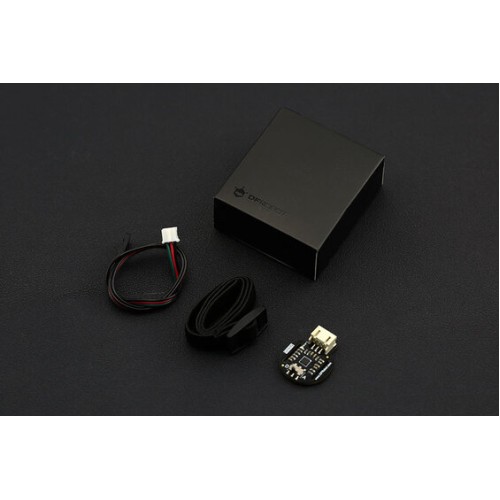

- Heart Rate Monitor Sensor For Arduino x1
- Wrist belt x1
- PH2.0-3P cable x1
| Specification | |
| Baud Rate | 115200 bps |
| Cable Lenght | 15cm |
| Connector | Gravity |
| Output | PH2.0-3P |
| Power | 3.3 - 6V (5V recommended) |
