128x64 Graphic LCD
128x64 Graphic LCD

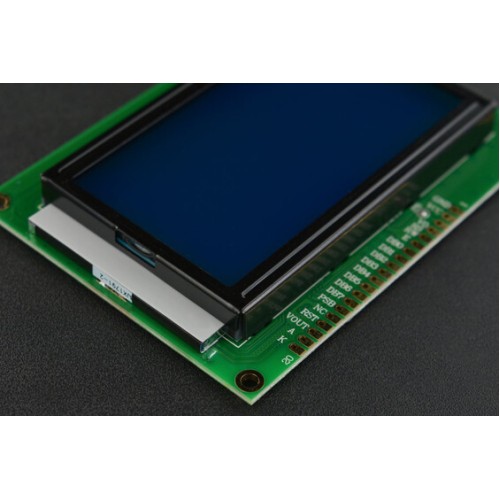

Introduction
This is a 128x64 liquid crystal display that support Chinese character , English characters and even graphics, very suitable for interactive work with Arduino.
Specification
- Voltage: 5V
- With Chinese font
- Blue backlit
- Controller: ST7920

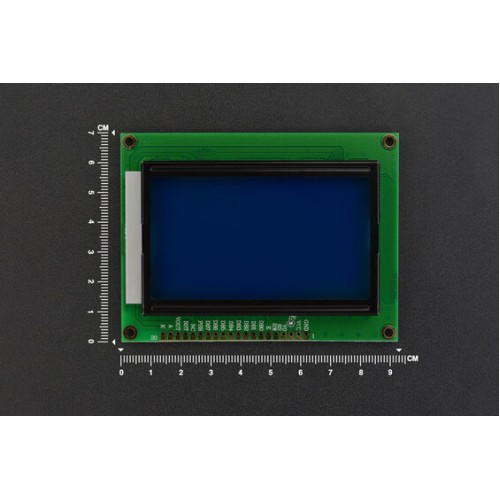

- Size: 93x70mm (3.7x2.8 in)
Documents
- Setting Pixels for ST7920 based 128x64 LCD
- Data sheet for ST7920
- Arduino library v1.0 for serial mode
- Arduino library v1.0 for parallel mode
Shipping List
- 128x64 Graphic LCD x1
| Specification | |
| Connector | Fermion |
| Output | Digital |
| Resolution | 64 x 16-bit display |
| Power | 2.7V to 5.5V |
| Range Output | Supports 16 words x 4 lines (Max) LCD display range 16 words x 2 lines 64 x 256-bit Graphic Display RAM (GDRAM) |
