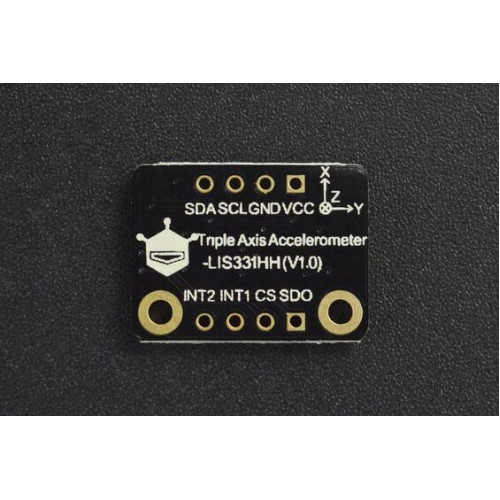

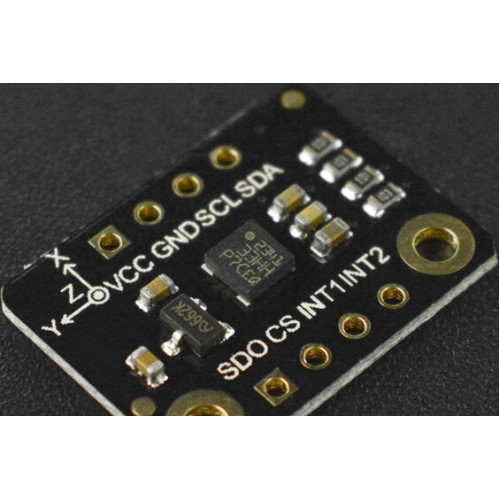

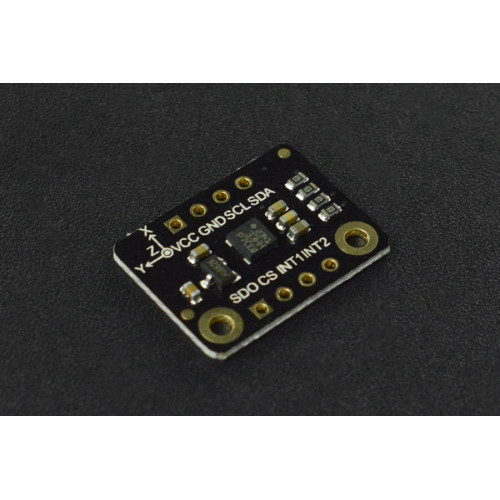

Fermion: I2C LIS331HH Triple Axis Accelerometer (Breakout) (±6g/±12g/±24g)
Fermion: I2C LIS331HH Triple Axis Accelerometer (Breakout) (±6g/±12g/±24g)
Introduction
The LIS331HH is an ultra-low-power high precision triple-axis linear accelerometer with 16-bit data output. It has user selectable full scales of ±6g/±12g/±24g and is capable of measuring accelerations with output data from 0.5Hz to 1kHz. Its power consumption is as low as 10μA. The device contains two programmable independent interrupt engines that are able to recognize dedicated inertial events, which makes it more playable. The board is extremely suitable for applications such as navigation, smart agriculture, robotic technology, VR/AR, etc.
Features
- Selectable scale range of ±6g/±12g/±24g
- Two programmable interrupts
- Smart sleep to wake-up function that allows advanced power saving
- 16-bit data output
Specification
- Operating Voltage: 3.3 V
- Operating Current: 10μA~140μA (Low-power mode)/0.3 mA~0.4 mA (Normal mode)
- Interface: I2C/SPI
- I2C Address: 0x19 (Default)/0x18 (Selectable)
- Selectable Scale Range: ±6g/±12g/±24g
- 16-bit Data Output
- Frequency: 0.5Hz ~ 1KHz
- Operating Temperature: -40°C ~ +85°C
- 10000 g High Shock Survivability
- ECOPACK®RoHS and “Green” Compliant

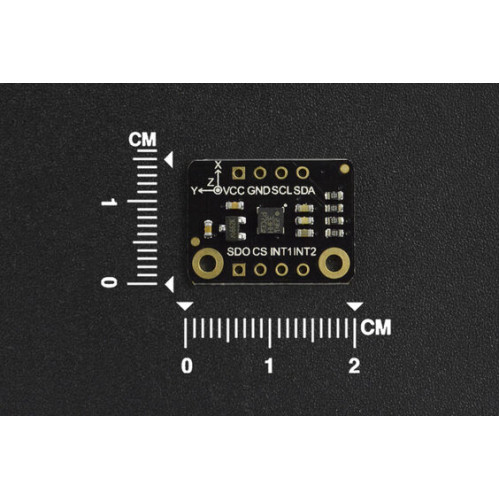

- Dimensions: 15*20 (mm)/0.59*0.79”
Documents
Shipping List
- Fermion: LIS331HH Triple Axis Accelerometer (Breakout) x1
- 2.54-4P Black Single Row Pin Header x2
| Specification | |
| Baud Rate | 9600 bps |
| Connector | fermion |
| Output | I2C/SPI |
| Refresh rate | 0.5Hz ~ 1kHz |
| Power | 3.3V |
| Range Output | ±6g/±12g/±24g |
