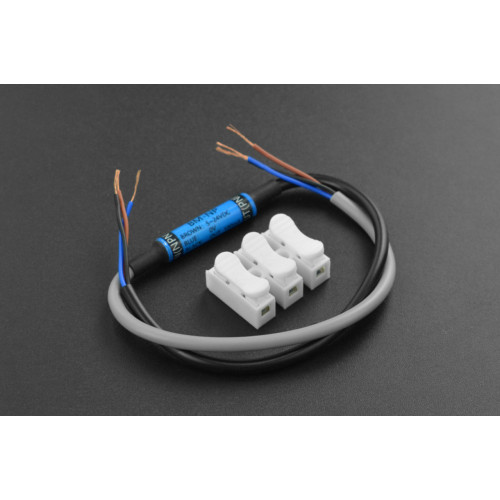

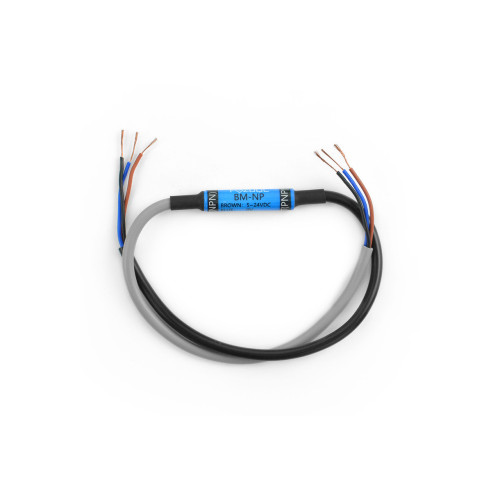

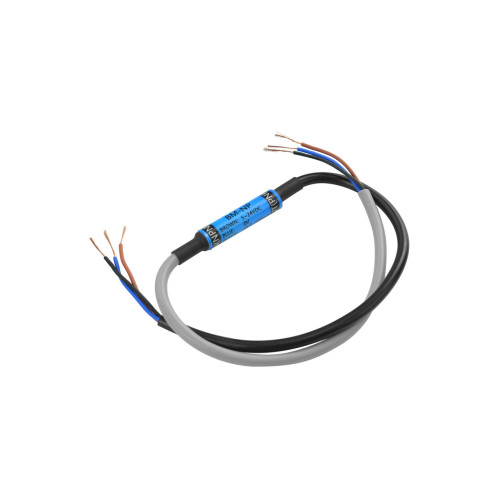

NPN to PNP Signal Converter / Adapter Module
Introduction
If sensors are used in your equipment or control systems, having these signal converter modules like this NPN to PNP converter readily available could effectively eliminate the last-minute problems that you encounter when your controller and the type of sensor you are using have a mismatched signal.
This signal converter is designed to convert NPN signal to PNP and is equipped with surge absorption and over-current protection to further protect your device.
Specification
- Working Voltage: 5~24V DC
- Current Protection: Overcurrent protection, surge absorption
- Load Current: 100mA max
- Operating Temperature: -20℃~70℃
- Operating Humidity: 35~85%RH
- Response Time: 1us

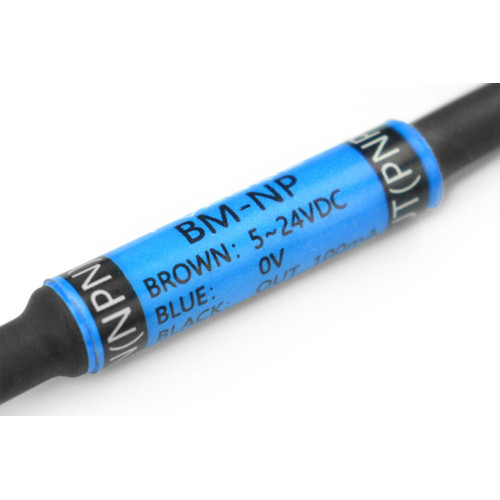

- Model: BM-NP
- Conversion: NPN.NO-PNP.NO
Documents

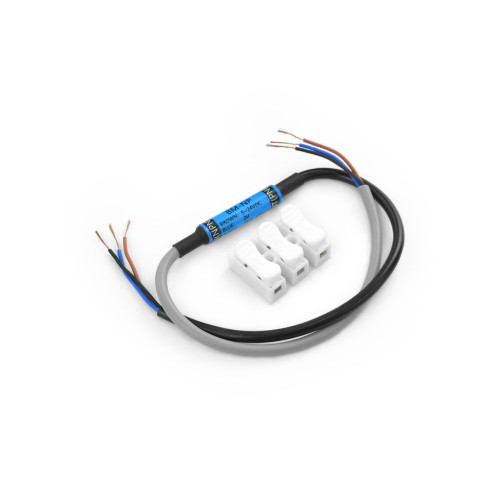

Shipping List
- NPN to PNP Converter x1
- Wire Connector x1
| Specification | |
| Cable Lenght | NPN.NO-PNP.NO |
| Connector | Gravity |
| Output | NPN-PNP |
| Resolution | 1us |
| Power | 5~24V DC |
| Range Output | NPN.NO-PNP.NO |
